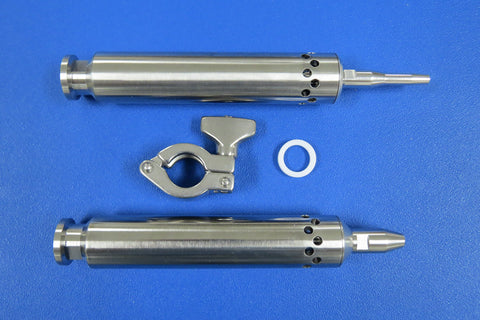

75lpm and 100lpm High Pressure Diffuser
Total Air Particulate Compressed Air/Gas High Pressure Diffuser
High Pressure Diffuser to assist in the testing of compressed air/gas systems for total air particulates. This diffuser can be used in conjunction with almost any Laser Particle Counter (LPC) on the market with a 1CFM, or 28.3, 50, 75, or 100 LPM Flow Rates for testing of particles down to 0.3microns. With the three piece construction of electro polished 316SS, the unit itself generates virtually no particulate matter.
- 316 Stainless Steel / Electro-polished
- 75 and 100 LPM Laser Particle Counter (LPC)
- 75 or 100 LPM/18-21 to 125 PSI
- 1” Sanitary Fitting (0.980” OD)
- 0.500“ OD (75/100 LPM)
- 5.5“ Length x 1.25“ OD
