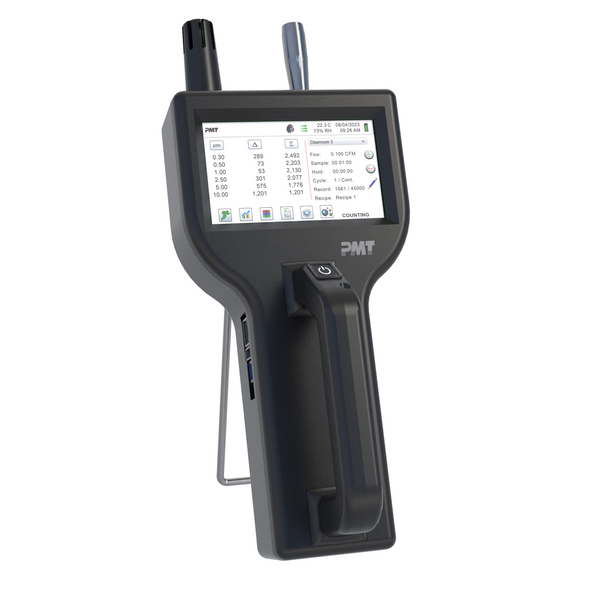

PMT 8503 handheld particle counter
The PMT 8503 handheld particle counter measures 0.5 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
This easy to configure instrument displays up to 3 user selectable size channels as well as temperature and relative humidity. View data and generate reports to ISO 14644-1, EU GMP Annex 1 or FS 209E on screen or via printer, USB stick, in real time via the versatile output options or export to the data download software. The PMT particle counters can be remotely controlled and monitored via a web browser. The 8503 also has a mass concentration mode that approximates density in μg/m³.
All PMT particle counters comply with ISO 21501-4 and JIS B9921. The 8503 ensures compliance with an integrated pulse height analyser.
Industry’s highest concentration of 15,000,000 particles/ft3 @ 10% coincidence loss
Ideal for use in research, industrial health and safety, indoor air quality, and cleanroom applications
Up to 10 hours continuous operation on a fully charged battery
Industry’s first Sleep Mode and Power Conservation Mode with Intelligent Battery
Real-Time Meter detects particle contamination sources with visual and audible indication
Internet of Things (loT) communication allows for network or cloud-based data options
Comes complete with operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable, Calibration certificate
