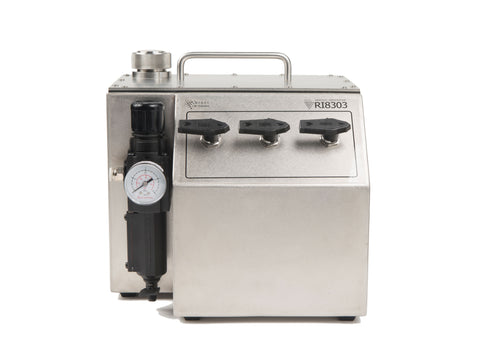

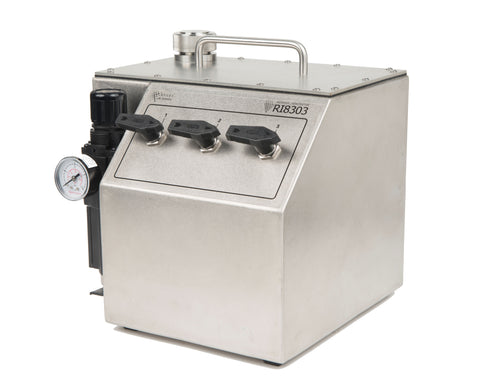

Aerosol Generator RI8303

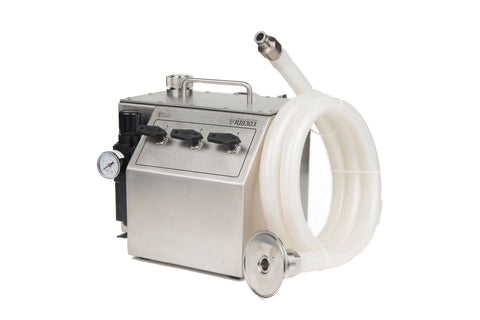

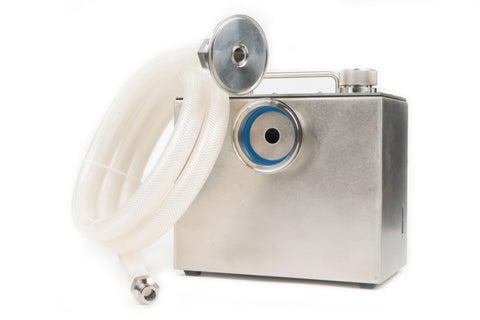

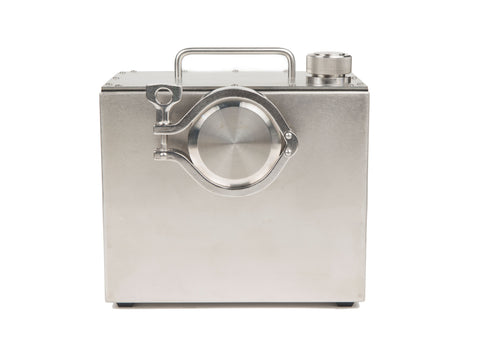

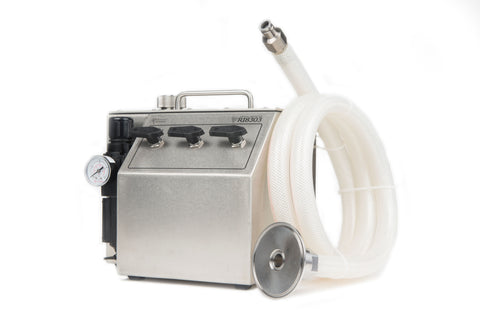

The Rigel RI8303 Aerosol Generator is designed to be portable and versatile. Using Laskin nozzles placed within the tank of the instrument, the aerosol is vaporized. It is ideal for the certification of small and medium-sized areas, when low range of airborne concentration are required. The Rigel RI8303 includes rugged stainless-steel construction, large fill port, individual nozzle control, and a 3″ standard sanitary fitting outlet. An 3” hose adapter (included within the unit) is available for introducing the aerosol into positive pressure systems. RI8303 gives its best in RABS, isolators and safety cabinets.
| Type of device | Aerosol generator produced by cold atomized oil |
| Field of use | High efficiency filtering systems integrity tests (ISO 14644-3 – Section 3.2.1) |
| Aerosol type | Polidispersed (cold) |
| Atomizers | 1 ÷ 6 Laskin nozzles |
| Produced Aerosol | Max 8000 cfm |
| Aerosol Concentration | Manual regulation: – 100μg/l @ 800 cfm – 10μg/l @ 8000 cfm |
| Compatible oil type (*) | In accordance with the types indicated in ISO 14644-3 (Section C.6.4): DOP (Dioctyl Phthalate) – PAO (Polyalphaolefin) – DOS (Dioctyl sebacate) – DEHS (di-2-ethylhexyl sebacate) – Shell Ondina EL |
| Oil tank capacity | 5 Litres |

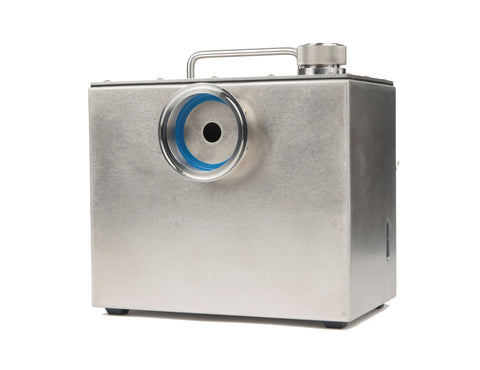

| Oil level | Check window |
| Service compressed air | Pressure Max 4 bar |
| Compressed air consumption | Min. 2.65 cfm/nozzle @ 1.33 bar |
| Environmental conditions during operation | Temperature 0 °C + 40 °C Relative Humidity 10 ÷ 90% |
| Storage environmental conditions | Temperature – 20 °C + 55 °C Relative Humidity 10 ÷ 90% non condensing |
| Case | Aluminum |
| Dimensions (L x P x H) | 260 x 240 x 280 mm |
| Weight | 8.5 kg (dry) |
